Products
Six Product Families, One System
Panels, doors, refrigeration units, coolers and freezers — engineered together so the interfaces are our problem, not yours.
Product family 01

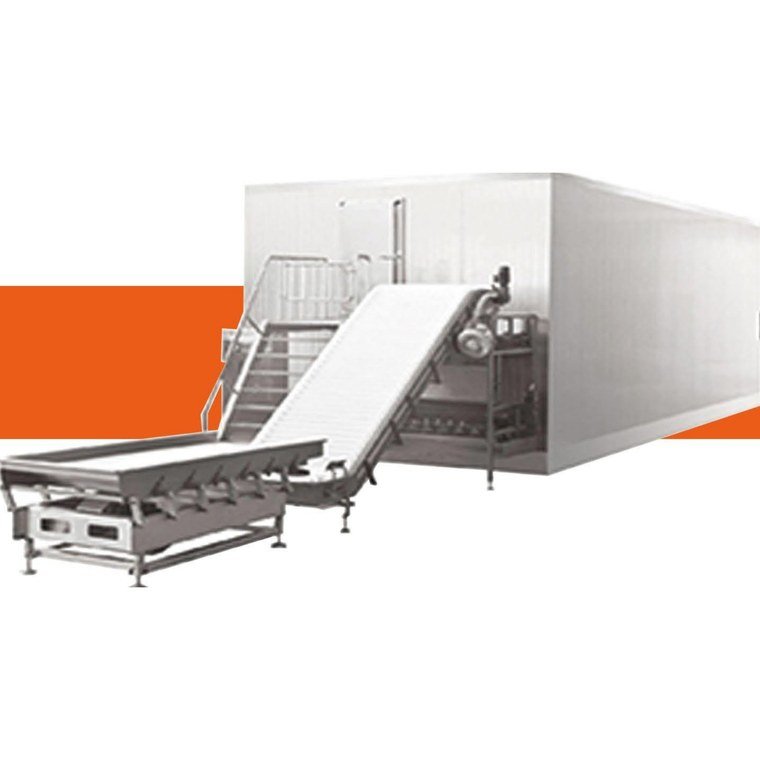

Freezing Machines
Spiral, tunnel, flat and fluidised-bed freezers for IQF and bulk freezing.
Freezing is where product quality is won or lost. We select the freezing principle from your product shape, size, throughput and target core temperature — not from what happens to be in stock. Options cover spiral freezers for high-volume IQF, tunnel and flat freezers for block and portion freezing, and fluidised-bed units for individually quick frozen vegetables and small seafood.
Product family 02

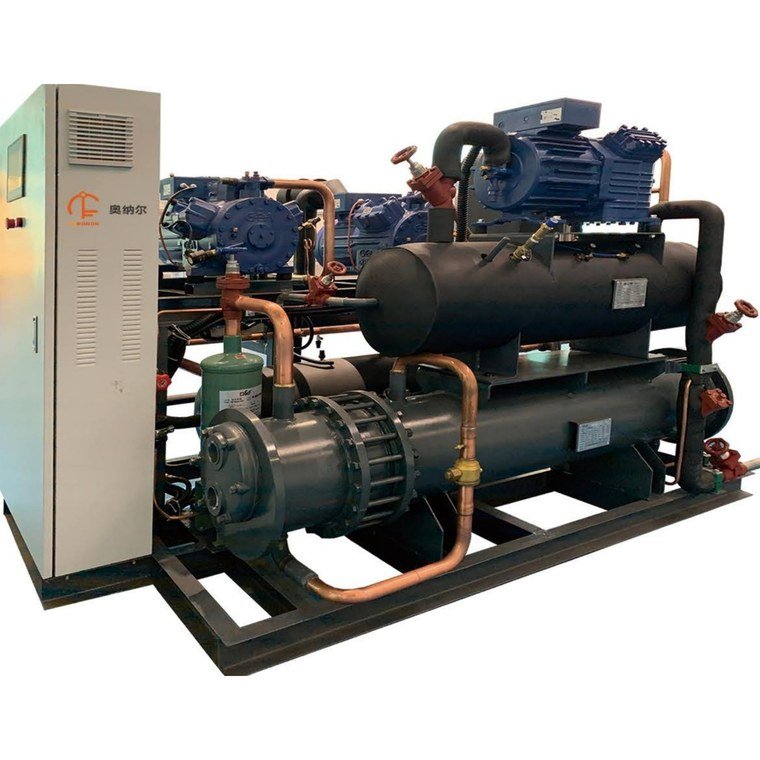

Refrigeration Units
Freon, ammonia and CO₂ cascade units for continuous industrial duty.
Refrigeration units are sized from the full load calculation — product pull-down, transmission, infiltration, fan and defrost loads — then matched to your refrigerant strategy. We build Freon, ammonia and CO₂ cascade packages with low charge, and specify screw or reciprocating compressors according to duty cycle and part-load efficiency.
Product family 03

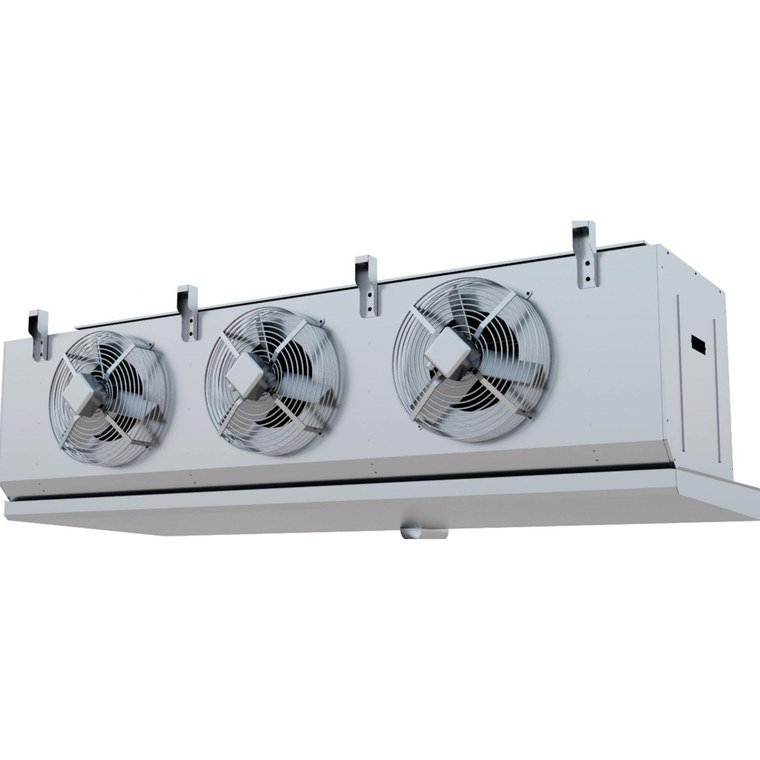

Air Coolers
Bilateral, standard and water-flushing unit coolers for every defrost regime.
Cooler selection decides how evenly a room holds temperature. We match fin pitch, fan type, throw and defrost method to the room — air defrost for positive temperatures, electric or hot-gas for frozen storage, water flushing where hygiene demands it. Bilateral and dual-discharge arrangements solve awkward room layouts.
Product family 04

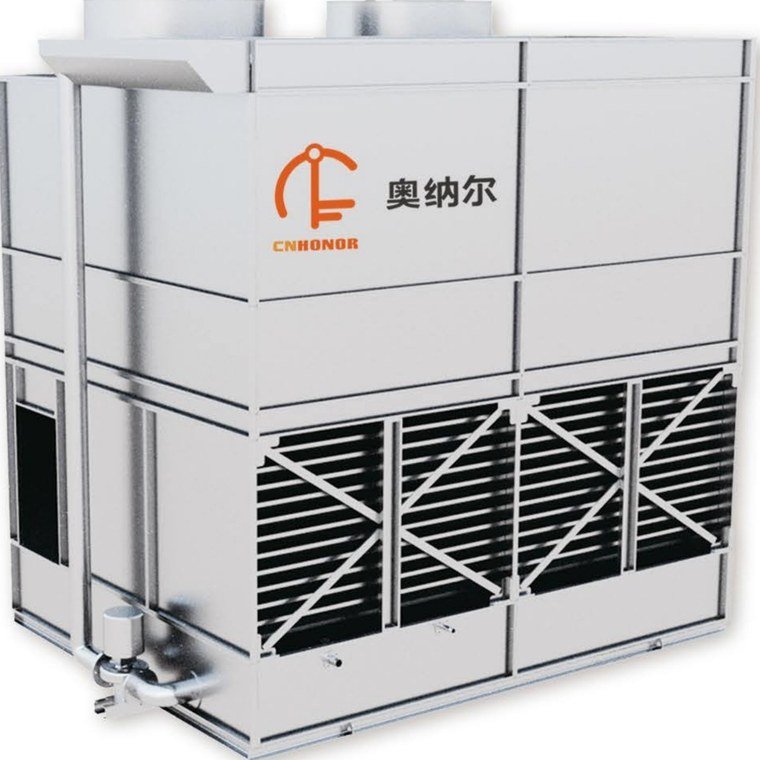

Evaporative Condensers
Co-current and counter-current evaporative cooling for high-load plants.
Where water is available and heat rejection load is high, evaporative condensing cuts condensing temperature and compressor power. Co-current and counter-current designs are available, with corrosion-resistant coils and optional water treatment packages for long service life in humid or coastal climates.
Product family 05
Cold Storage Panels
Polyurethane sandwich panels, continuous-line panels and purification boards.
Panels are produced on our own continuous line, so foam density, thickness tolerance and surface finish are controlled in-house. Standard thicknesses from 50 mm to 200 mm cover chilled, frozen and deep-freeze rooms. Purification-grade boards with food-safe surfaces are available for processing areas.
Product family 06

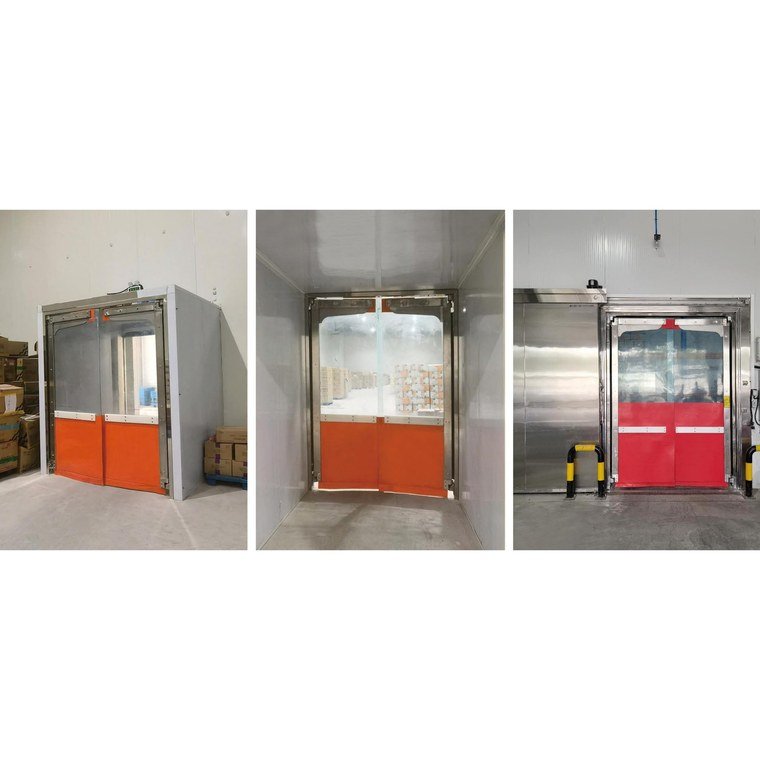

Cold Storage Doors
Sliding, swing, buffer, clean, air-cushion and industrial doors.
Doors are the most-used and most-abused part of any cold store. Our range covers manual and powered sliding doors, swing doors, double-acting buffer doors for high-traffic processing areas, clean-room doors and air-cushion doors for intense traffic. Dock levellers and shelters complete the loading interface.
Getting a Quote
What We Need From You
Send us these five items and we can come back with an equipment selection, a layout drawing and a delivered price.
| What we need | Why it matters |
|---|---|
| Product type | Shape, size and packaging decide the freezing principle and the freezing time. |
| Throughput | kg/h or t/day sets the capacity of the freezer, unit cooler and compressor. |
| Room temperature | Chilled (+0 to +4 °C), frozen (−18 °C) or deep-freeze (−25 to −40 °C) changes every component. |
| Room size | Length × width × height determines panel area, air distribution and cooler throw. |
| In/out method | Racking, pallet, trolley or conveyor — it decides the door type and layout. |
